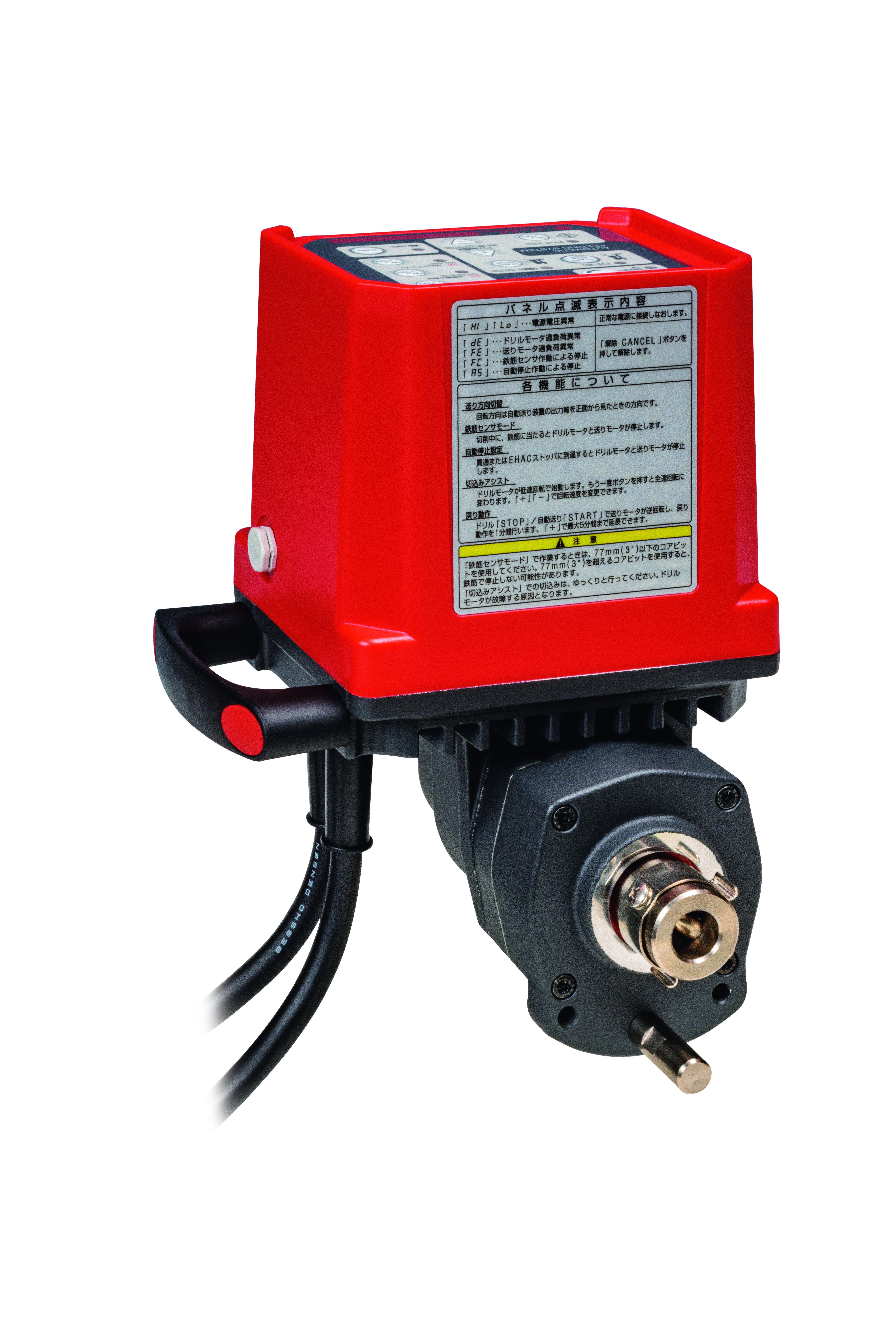

EHAC-110S Series
Features
■Automatic feeding system for core drilling machine.
■Drill Assist helps big diameter drilling with slow spin.
■Core drill load setting is adjustable.
■Feed direction can be switched.
■Backlight helps operation in dark place.
■After complete drilling, feeding and drilling automatically stop.
■Integrated reinforced steel sensor function.
Specifications
| Specification | ||||
|---|---|---|---|---|
| Model name | EHAC-110Sx | EHAC-110Sw | ||
| Power supply (Single phase) |
AC230V 50Hz/60Hz |
AC110-120V 50Hz/60Hz |
||
| Max power consumption |
76.8W |
|||
| Max feeding speed | CL-49 series | Approx.177mm/min | ||
| CL-59series | Approx.118mm/min | |||
| CL-74series | Approx.139mm/min | |||
| Applicable core drill machine |
SPF, SPN, SPZ, SPM, SPO and SPX |
|||
| Range of motor rated current |
5～16A |
5～28A |
||
|
Reinforced steel sensor working core bit range |
25～77ｍｍ（3”） | |||
| Size | 202×194×272mm | |||
| Weight | 6.7kg | 6.5kg | ||
