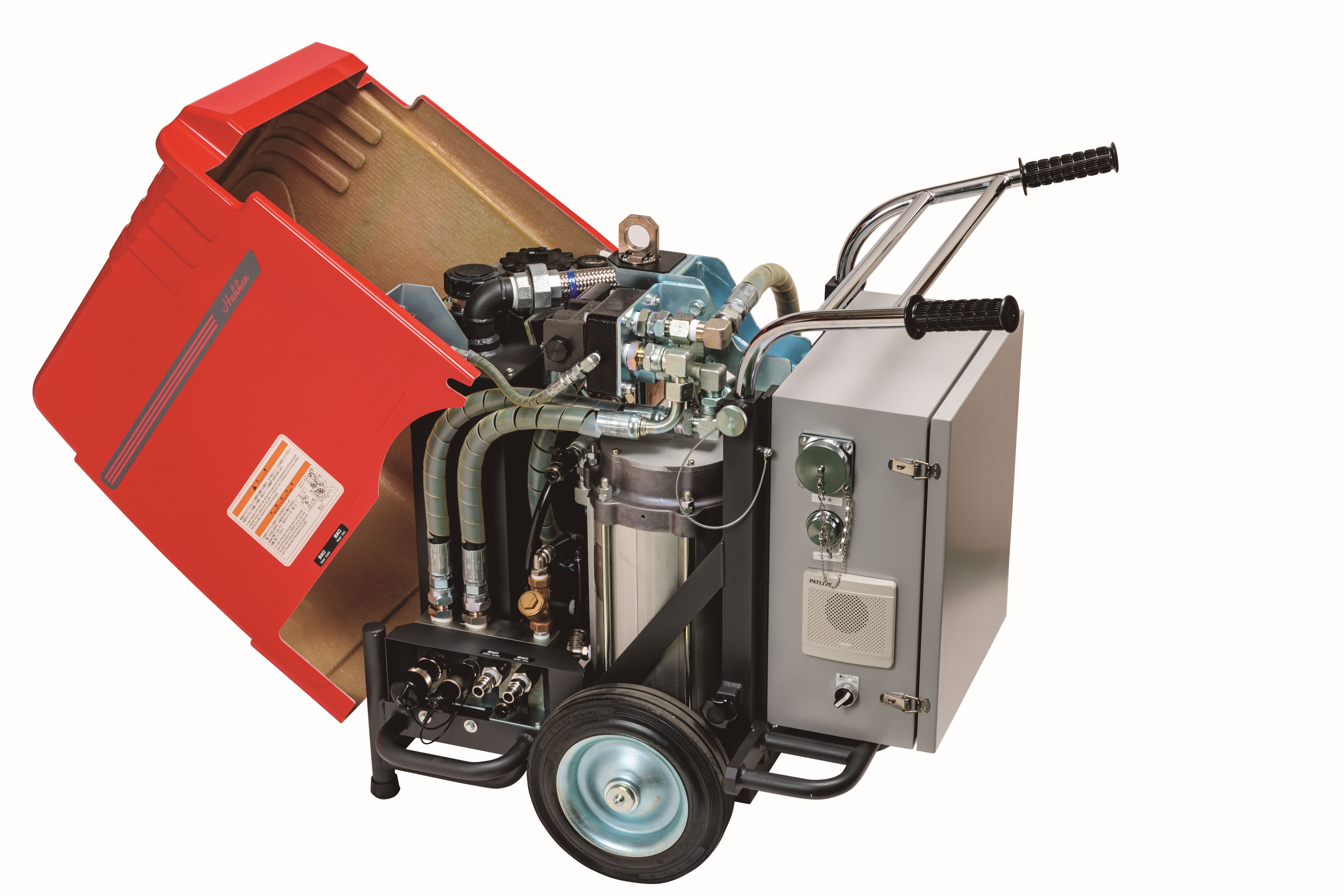

Hydraulic Unit E-2012A(x) eco+
Features
■Equipped high power 20kW water cooled three-phase electric motor
■Safety design for starting alert
■Environmentally friendly products using biodegradable hydraulic oil
■All HAKKEN hydraulic motor for core drill, wall cutter and wire saw can be operated.
Specifications
| Specifications | |||
|---|---|---|---|
| Model name | E-2012A eco+ | E-2012Ax eco+ | |
|
Power source |
Three-phase 200/220V 50/60Hz | Three-phase 400V 50/60Hz | |
|
Motor |
20kW | ||
|
Max. pressure |
28MPa | ||
|
Discharge |
23.5～54.5ℓ/min（50Hz） 28.3～65.6ℓ/min（60Hz） |
||
|
Oil cooler |
Water-cooled |
||
|
Oil tank capacity |
20ℓ | ||
|
Size（W×L×H） |
680×943×902～1,242mm 680×843×824mm（Without handle） |
||
|
Weight |
240kg | ||
|
Standard accessories |
Hydraulic hose 5/8" 20ｍ eco+（2 pcs） Powewr cable 10m, Remote control switch Conversion adapter, Double-ended wrench 13×17ｍｍ Coupling 1/2" socket（2 pcs）, Hose band（2 pcs） |
||
