59mm Drill Carriage Assy.
Features
- Heavy-Duty Clamp Assembly for High-Rigidity □５９Pole Bases
The straight-line accuracy of a core drill, which is critical in large-diameter and deep-hole drilling, is highly influenced by the rigidity of the pole base and clamp assembly.The □59 clamp assembly, sturdy yet lightweight, securely supports large core drills. - There are two types of slide methods
We have two types: the 'slide plate type,' which has metal slide plates attached on four sides of the sliding part, and the 'roller slide type,' which combines rollers with metal slide plates. - E version and S version can be equipped with the Automatic Feeding System EHAC-110 series
- The slide-type cut-in handle uses a spring return handle
The handle is equipped with a spring, which automatically returns it to the neutral position when released, enabling easy regripping. The CL-593 series has a removable 'one-touch handle'.
Specifications

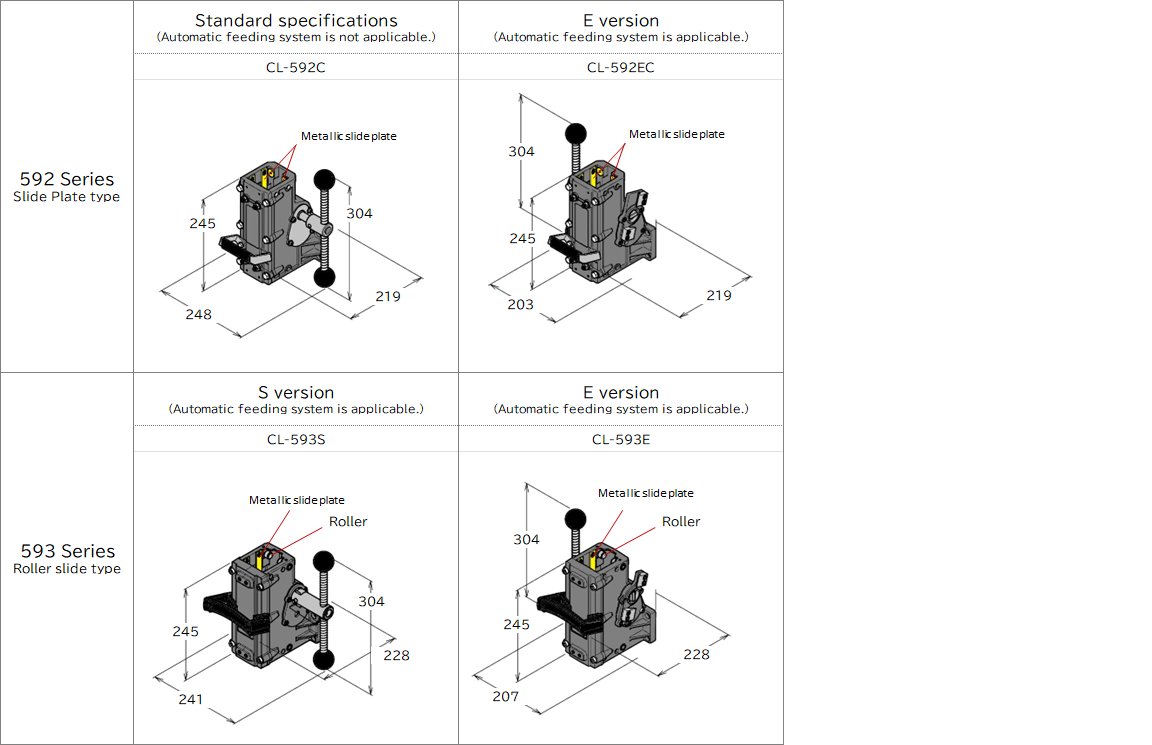

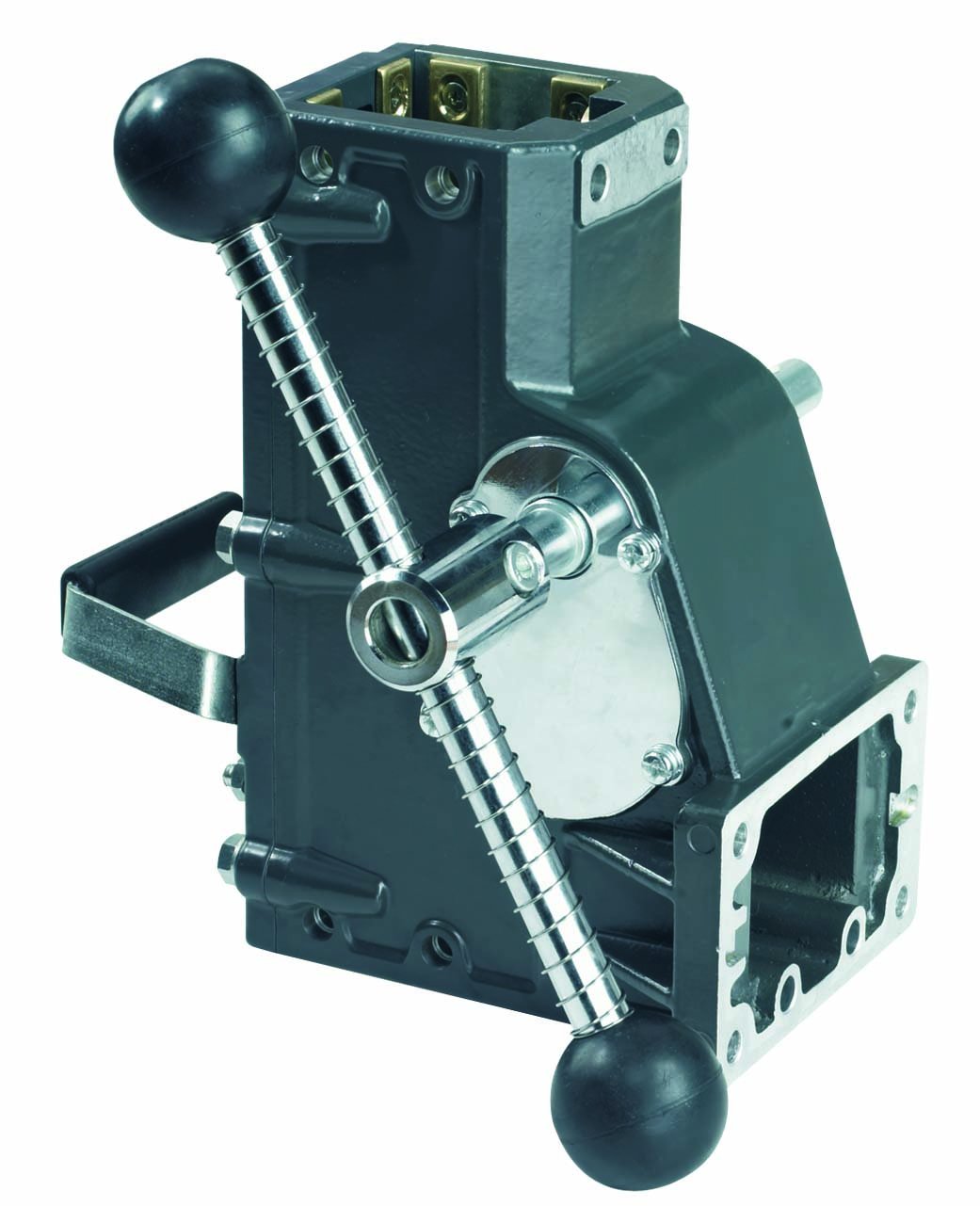

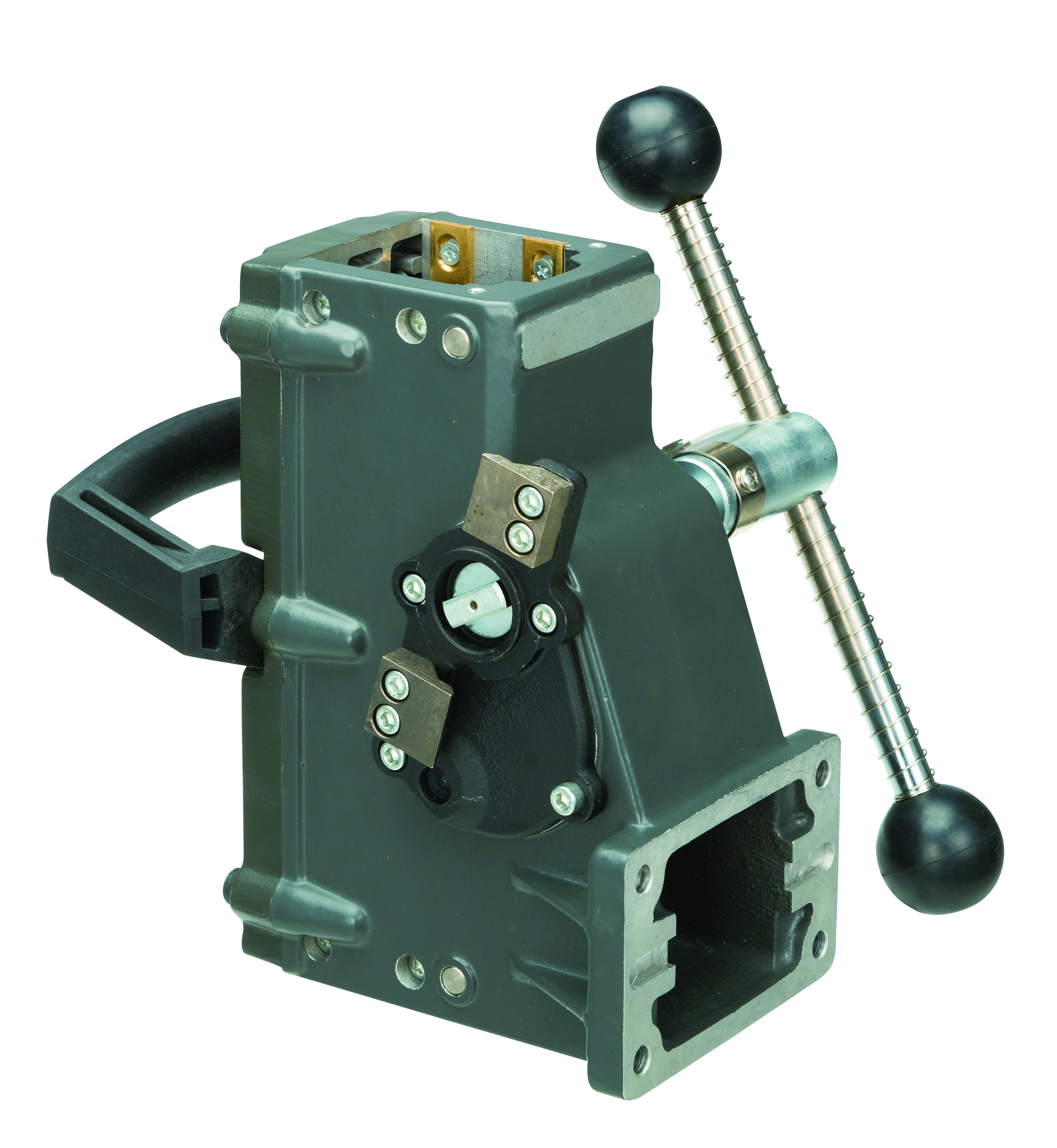

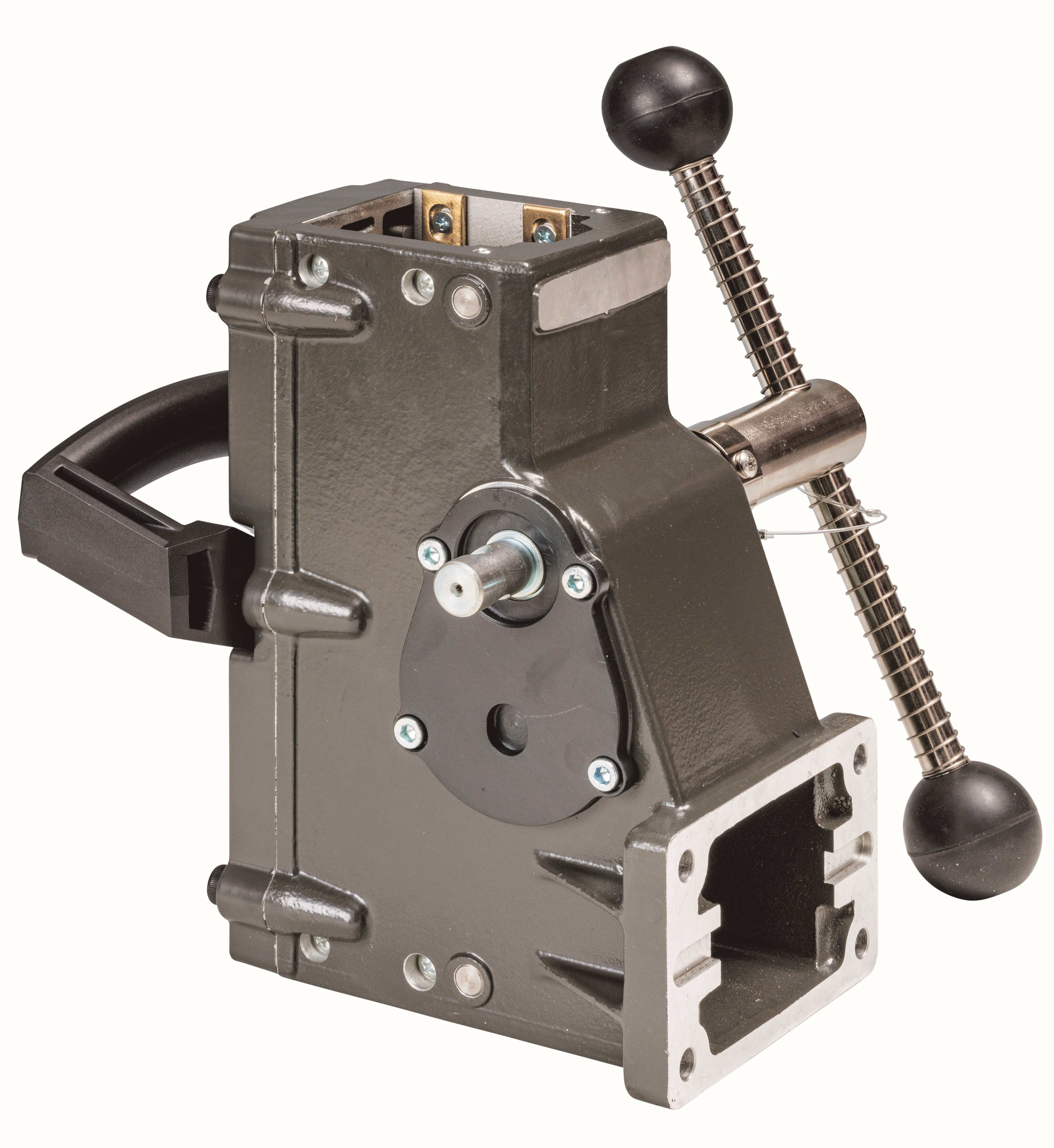

| Model Name | CL-592C | CL-592EC | CL-593S | CL-593E |
|---|---|---|---|---|
| Mechanism | Slide plate type | Roller slide type | ||
|
Autofeed |
N/A |
Yes |
Yes | Yes |
| Weight | 5.2kg | 5.9kg | 5.4kg | 5.6kg |
|
Standard Accessories |
Fixing bolt for drill motor Parallel Key 10x8x115mm Single-ended wrench 13mm Hex. Bar wrench 4mm |
|||
