74mm Drill Carriage Assy.
Features
- Drill Carriage Assy. designed for large-diameter cores around 600 mm class and hydraulic core drilling machines
This is a robust 74ｍｍ Drill Carriage Assy. designed for use with heavy duty core drills, enabling smooth drilling of large-diameter holes up to 600mm with electric drills and up to 800mm with hydraulic drill - Slide mechanism
For the slide section, we offer "slide plate type" with metal slide plates attached on four sides. - E version can be equipped with the Automatic Feeding System EHAC-110A series

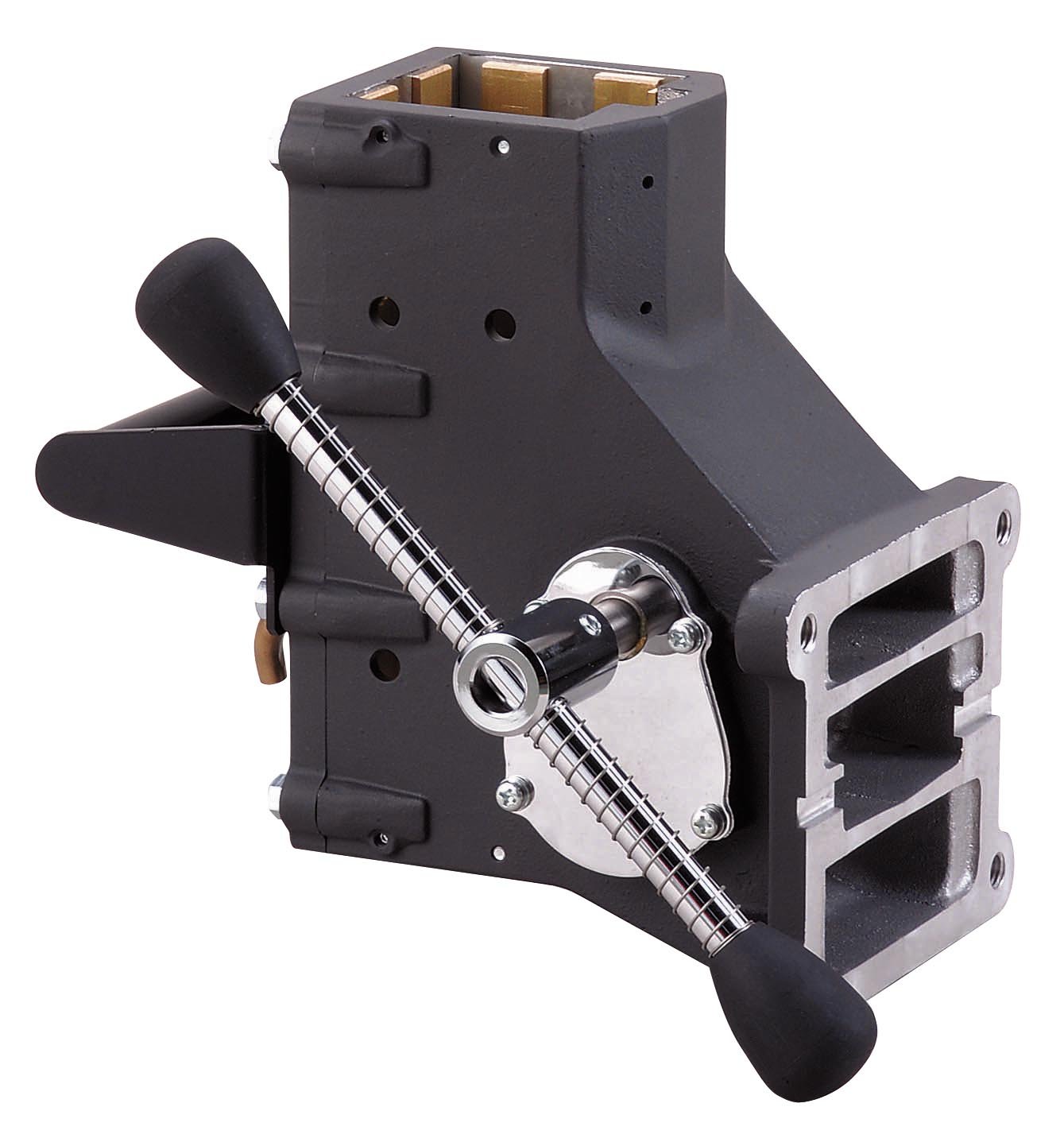

- CL-743 series use spring return handle
The handle is equipped with a spring, which automatically returns it to the neutral position when released, enabling easy regripping.

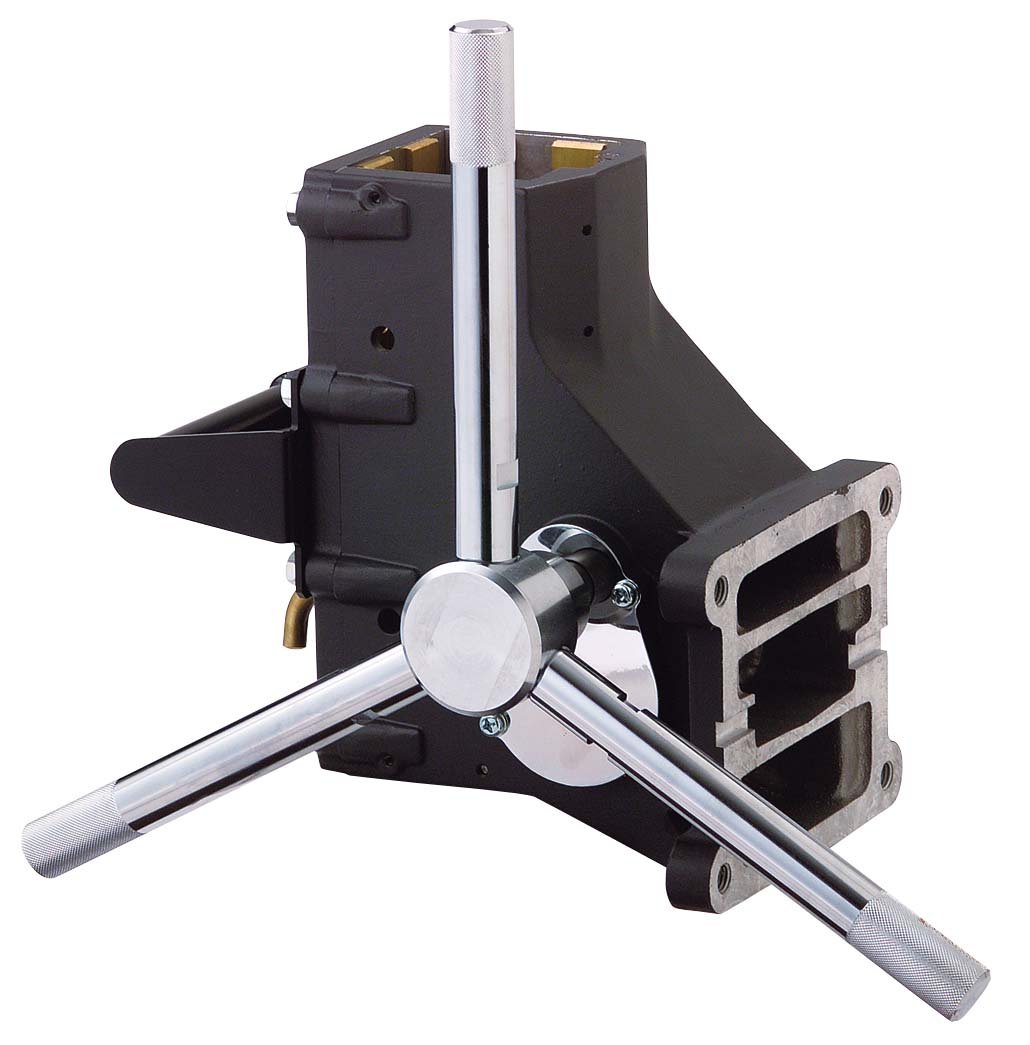

- CL-742 use 3 bar handle for feeding
The fixed handle design eliminates play during rotation, enabling precise fine adjustment of the feed during cutting. In contrast, spring-return handles may exhibit looseness due to their sliding mechanism.
Specifications
| Model name | CL-742 | CL-743 | CL-743E |
|---|---|---|---|
| Mechanism | Slide Plate type | ||
|
Autofeed mounting |
N/A (Modification is necessary) |
EHAC E version can be mounted | |
| Weight | 9.6kg | 7.3kg | 7.8kg |
|
Applicable Drill Motor |
SPX-601 series SPU-A series |
||
|
Applicable Pole Base |
74mm Pole Base |
||
|
Standard Accessories |
Single-ended wrench 13mm, Hex.Bar wrench 4mm |
||
