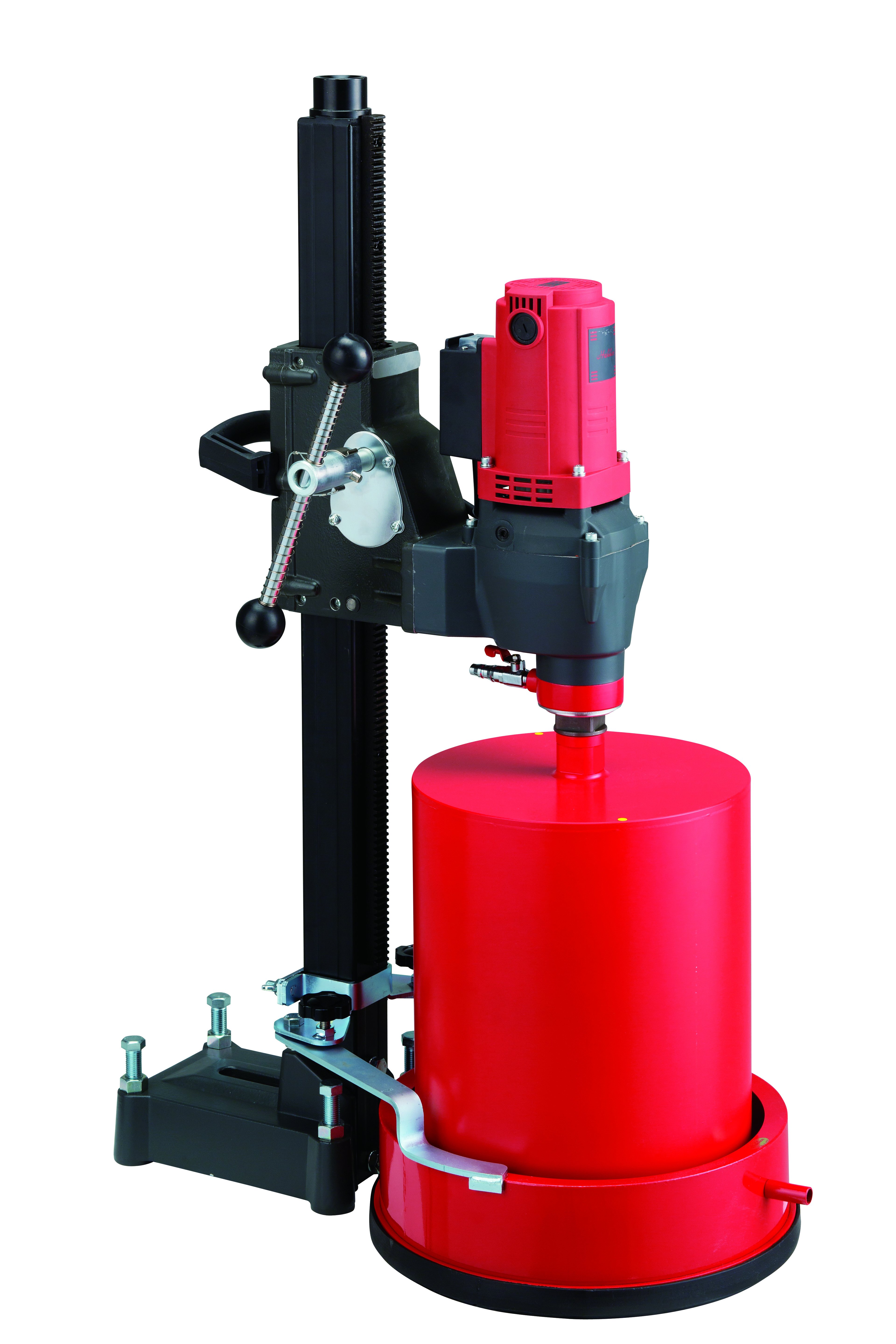

Drill Motor SPM-303U2w
Features
■Japan-made maximum output 2,400W motor
Accumlated production know-how achives high quality components with competitive price.
■Equipped with slipping clutch
Clutch torque can be adjusted at job site without disassembly of gear box.
■Swiveling Water Supply Cock
Water Supply Cock can be turned for necessary direction of water hose.
■High performance circuit protector
■One-Touch-Handle
Feed-Handle can be simply changed for right side or left side with One-Touch-Pin in order to work at narrow place.
■ 59mm Pole Base (Sold separately)
■ 59mm Drill Carriage Assy. (Sold separately)
Specifications
| Core Drill Specifications | ||
|---|---|---|
| Model Name | SPM-303U2w | |
| Power Source | 120V | |
| Rated Current | 20A | |
| Maximum Output | 2,400W | |
| No-load speed | 400/950min -1 | |
| Maximum bit diameter | 305mm (12") | |
| Spindle thread | 1 1/4"-7UNC | |
| Size W×L×H | 148×179×456mm | |
| Weight (Drill Head only) | 10.5kg | |
| Drill Carriage Assy. | Not included, CL-593S and CL-593E can be combined. | |
| Pole Base |
Not included. SB-594 series and AB-591 -1085 can be combined. |
|
| *Core Bit, Water Collector and Water Collector Fitting sold separately. | ||
