Swiveling Pole Base
Specifications
| Pole size | 49mm | 59mm | 74mm | ||
|---|---|---|---|---|---|
| Main Pole model name | SB-494-1035 | SB-594-1035 | SB-594-1235 | SB-594-1535 | RB-741-1085 |
| Sub pole model name | RP-491 | RP-591 | |||

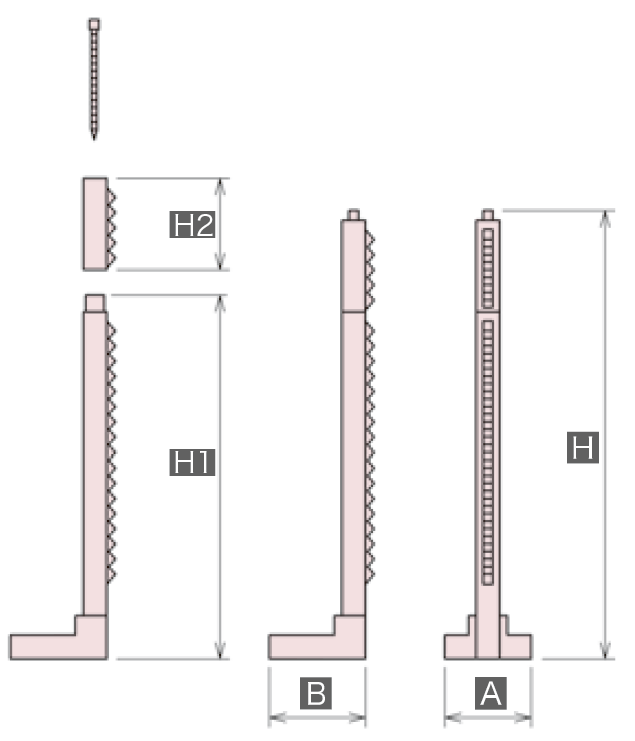

| Base size A x B | 177x217mm | 180×265mm | 200x320mm | ||
| Whole Height H | 1,284mm | 1,359mm | 1,559mm | 1,859mm | 1,448mm |
| Main pole height H1 | 1,035mm | 1,235mm | 1,535mm | 1,085mm | |
| Sub pole height H2 | 260mm | 340mm | 374mm | ||
| Weight | 11.9kg | 16.8kg | 18.4kg | 20.9kg | 28.0kg |
